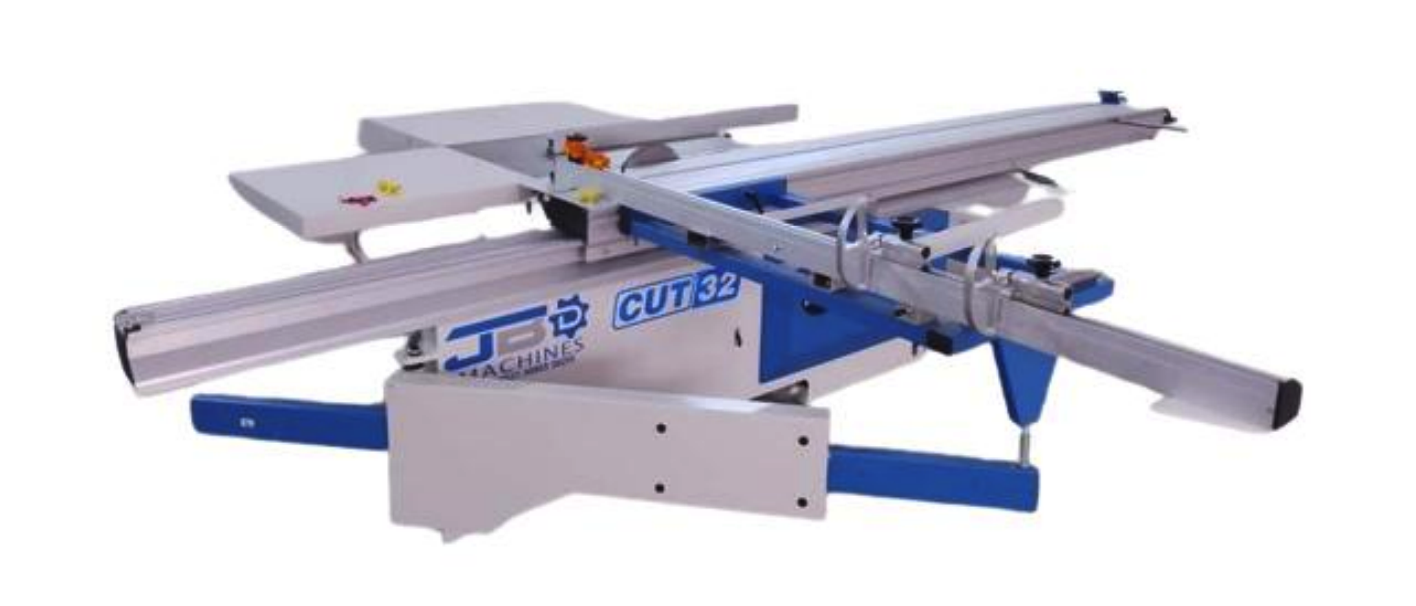

TECHNICAL SPECIFICATIONS
Sliding Table Length : 3200 x 375mm
Main Saw Diameter : 300 x 30mm
Main Saw Blade Speed : 4000-6000/min
Tiliting of Saw Blade : 900- 450
Max. Cutting Depth at 900: 100mm
Max. Cutting Depth at 450: 70mm
Motor for Main Saw Blade : 7.5 hp
Max. Dia for Scoring Blade : 120 x 20mm
Scoring Saw Speed : 8000/min
Max. Depth of cutting of : 5mm Scoring Blade
Motor for Scoring Blade : 1 hp
